Correspondence-Free, Function-Based Sim-to-Real Learning for Deformable Surface Control

Yingjun Tian1, Guoxin Fang2, Renbo Su1, Aoran Lyu1, Neelotpal Dutta1, Weiming Wang1, Simeon Gill1, Andrew Weightman1, Charlie C.L. Wang1
1University of Manchester, 2The Chinese University of Hong Kong
1 2
Paper arXiv Video Code

Abstract

This paper presents a correspondence-free, function-based sim-to-real learning method for controlling deformable freeform surfaces. Unlike traditional sim-to-real transfer methods that strongly rely on marker points with full correspondences, our approach simultaneously learns a deformation function space and a confidence map -- both parameterized by a neural network -- to map simulated shapes to their real-world counterparts.

As a result, the sim-to-real learning can be conducted by input from either a 3D scanner as point clouds (without correspondences) or a motion capture system as marker points (tolerating missed markers). The resultant sim-to-real transfer can be seamlessly integrated into a neural network-based computational pipeline for inverse kinematics and shape control.

We demonstrate the versatility and adaptability of our method on two vision devices and across four pneumatically actuated soft robots: a deformable membrane, a robotic mannequin, and two soft manipulators.

Video

Motivation & Challenges
Motivation

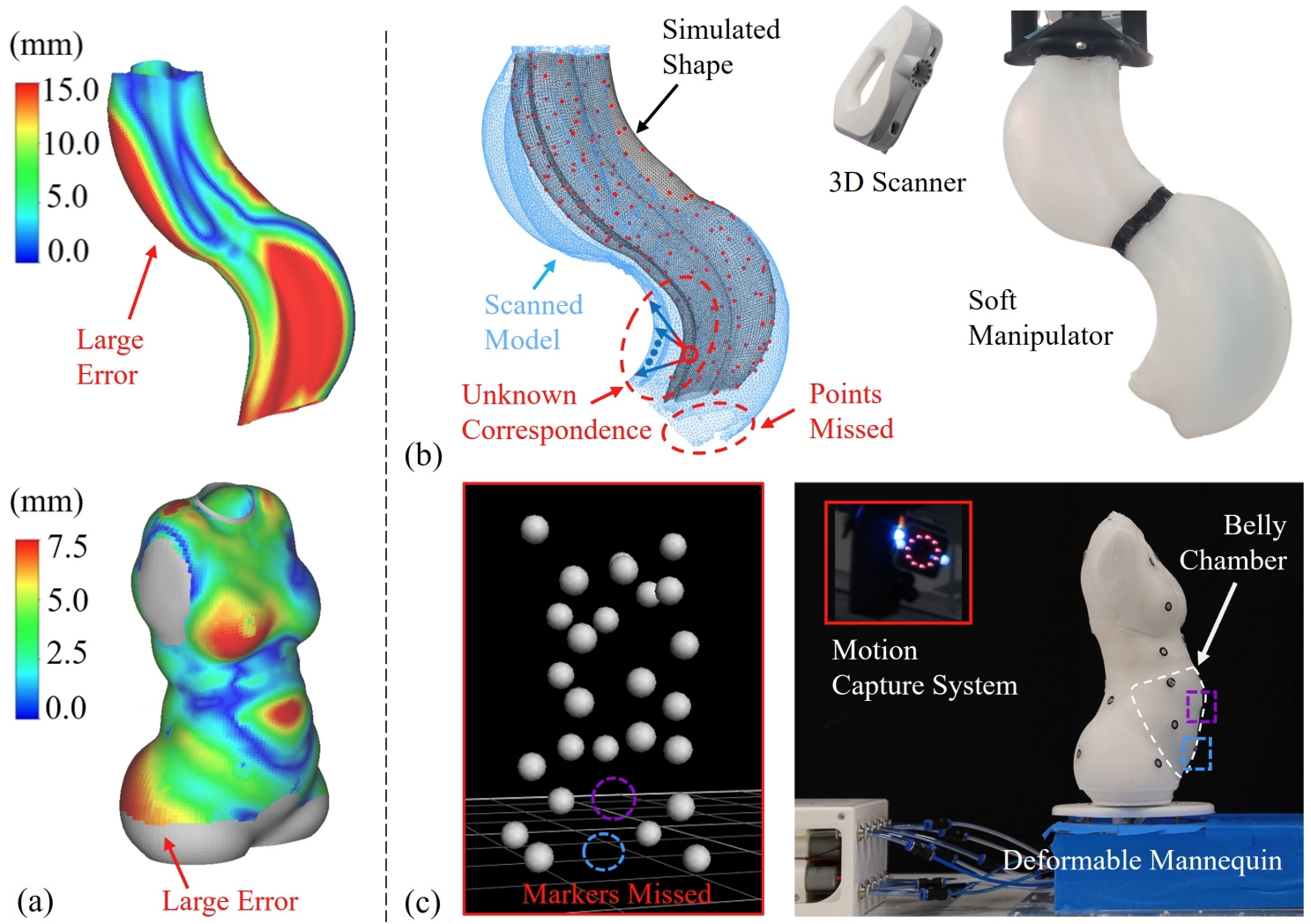

Figure The geometric data used to train sim-to-real mappings typically suffer from two issues: (1) unknown correspondences between scanned points and regions with partial missing data (from scanner), and (2) missing markers in some frames (from MoCap). To address these challenges, we propose a pipeline for robust and efficient sim-to-real transfer.
Our Pipeline
Pipeline

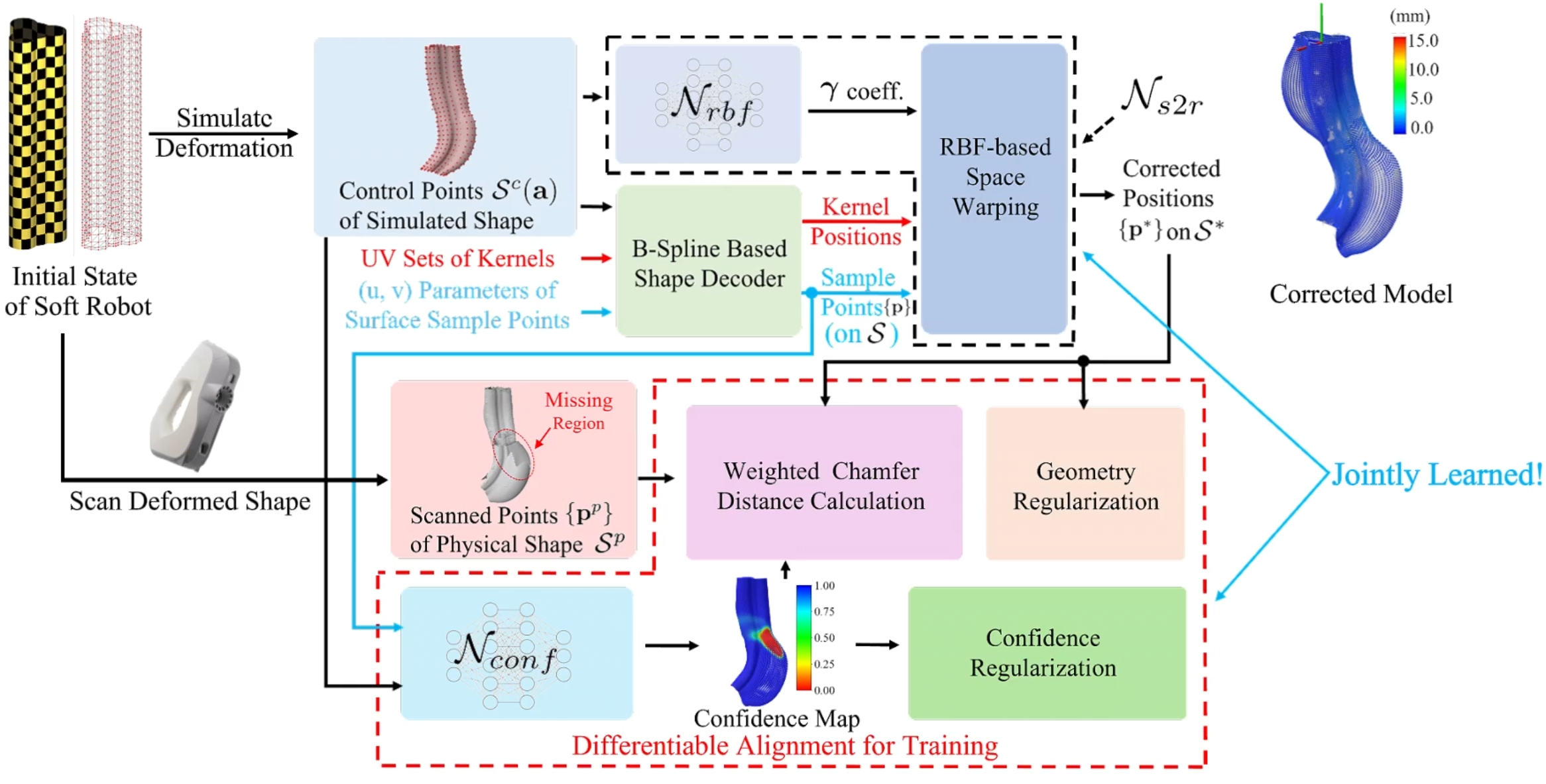

Figure The deformation and the correspondence are co-optimized with the help of weighted chamfer distance loss, the confidence regularization and the geometry regularization.

Video Co-learning of deformation and correspondence with partially missed scan as input

Appendix: Fabrication steps of surface actuator

Deformable Cruved Actuator Fabrication

Using curved actuator with hyper-elastic material, the deformation can be continuous with local curvature variation.

Deformable Cruved Surface Fabrication

Using curved molds you can create deformable free-form surfaces with hyper-elastic material.

BibTeX

@article{tian2025correspondence,
  title={Correspondence-Free, Function-Based Sim-to-Real Learning for Deformable Surface Control},
  author={Tian, Yingjun and Fang, Guoxin and Su, Renbo and Lyu, Aoran and Dutta, Neelotpal and Gill, Simeon and Weightman, Andrew and Wang, Charlie CL},
  journal={arXiv preprint arXiv:2509.00060},
  year={2025}
}
